  Byteshooter

Byteshooter



We are official distributor for the ByteShooter. The ByteShooter is currently one of the best OBD - flasher on the market. No Update - costs!
The ByteShooter is a tool which allows you to have the OBD plug on the vehicle data from the control device to read and to write. The big advantage is that the control device must not be opened and no soldering is needed. All data exchange happens on the OBD connector.

Of course you can get support from us here: Byteshooter Forum.

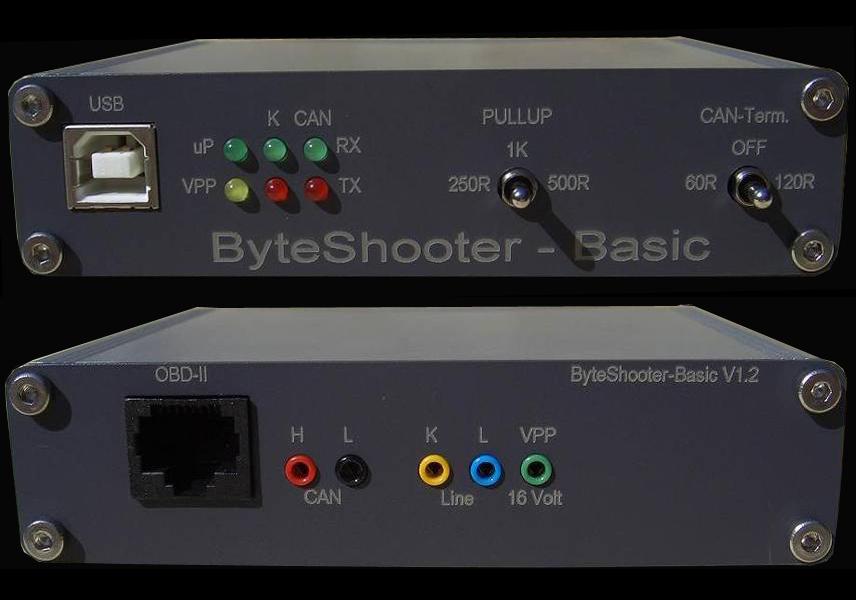

ByteShooter - Basic version V1.2 Housing 105 x 26 x 92 mm Housing 105 x 26 x 92 mm (W x H x D)
Interface:
USB 1.1 and 2.0 compatible
K-Line 5-30 volts, pullup-R 250,500,1000 ohms
L-Line 5-30 volts, pullup-R 1000 ohms
CAN 50000 - 1000000 bit / sec. Termination off, 60.120 ohms
VPP 16 volts for BMW, Alfa, Fiat, Mercedes, Porsche chip 28Fxxx or CC460
(VPP will automatically write to the ECU akiviert)
vehicle list

The package included:
ByteShooter - Basic
Cable: OBD 16pin, BMW-ADS, Mercedes-around car, USB cable-1, 8m

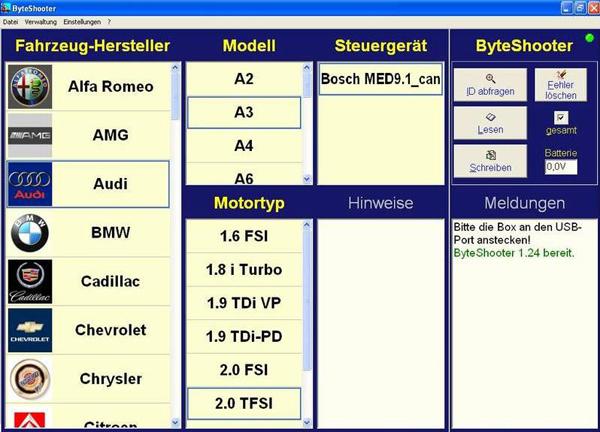

Installation CD-ROM with software and documentation.
Free activation of Module 1 and 2 (toolbox for C167, ST10F2xx, TC1796)
The ByteShooter Basic is available as a master, slave or master semifinal.
What ECU programmable so, please refer to the current vehicle list.
(Note: the vehicle list also includes vehicles with J1850 interface, these are ByteShooter Basic not feasible)

ByteShooter - Crossfire version V1.2
Case 105 x 26 x 92 mms (W x H x D)
Interface:
USB 1.1 and 2.0 compatibly
K-Line 5-30 volt, Pullup-R 250,500,1000 ohms
L-Line 5-30 volt, Pullup-R 1000 ohms
CAN 50000 - 1000000 bits / sec Termination off, 60,120 ohms
J1850 - Ford
J1850 - GM
VPP 16 volt for BMW, Alfa, Fiat, Mercedes, Porsche with chip 28Fxxx or CC460
(the VPP will activate automatically to write the ECU)

Included in delivery:

ByteShooter - Crossfire
Cable: OBD-16pin, BMW-ADS, Mercedes-round for passenger car, Ford/GM-OBD-J1850, USB-Kabel-1,8m
Installation-CD with software and documentation
Free Software-Module 1,2 and 4 (Toyota and Toolbox for C167,ST10F2xx,TC1796)
Which ECU are programmable with it, infer please from the current vehicle list.
The ByteShooter-Crossfire is available as a Master, Semimaster or Slave.
